设计:MAD建筑事务所 | 项目地点:日本 | 类别:商业空间 | 2018-08-08 11412 120

17_MAD_Echigo Tsumari_Tunnel of Light_Light Cave_by Osamu Nakamura.jpg



MAD Architects, led by Ma Yansong, has completed the restoration of the Kiyotsu Gorge Tunnel in Japan’s Niigata prefecture. The revitalization project sees the installation of several permanent artistic spaces along the historic lookout tunnel, with the intention of bringing back the cultural energy that once empowered the region. The “Tunnel of Light” opened on the occasion of the 2018 Echigo-Tsumari Triennale.


 03_MAD_Echigo Tsumari_Tunnel of Light_Periscope_low-res.jpg

  越后妻有是日本少有的大雪地带,包括日本新潟县南部的十日町市和津南町在内的760 平方公里的土地。这里四季自然景色优美,人们一直延续着传统的农业耕作方式,是经典的日本传统与自然风景融合的地区。然而随着社会生产方式的转型,越来越多的农村人口离开了土地,年轻人们藉由工作或者教育的机会向城市转移。因而它也正面临着日本,甚至全球常遇到的常见问题:人口稀少,高龄化现象严重(越后妻有总人口约6.5万人,其中65岁以上年长人口约占37%,而全日本的平均水平是27.7%)。

Located in the heart of Japan’s snow country, Echigo-Tsumari is home to mountainous terrain and a satoyama which is an agricultural expanse, where traditional ways of farming are still being practiced. While rich in nature, the region has slowly been suffering from an aging and decreasing population – a serious phenomenon that has seen many of the young, rural people moving to the big cities for work or education opportunities. This has left the elderly (65+ years) accounting for 37% of the community, while the average level in Japan is 27.7%.


05_MAD_Echigo Tsumari_Tunnel of Light_Periscope on day of tunnel opening_low-res.jpg



In 2000, Fram Kitagawa founded the Echigo-Tsumari Triennale as a means of restoring the cultural energy that had become lost in the region. Spanning more than 760 square kilometers, the Echigo-Tsumari Art Field hosts approximately 160 artworks, across 200 villages. The art installations are realized in collaboration between internationally renowned artists and locals, and are dispersed throughout the area’s fields, forests, empty houses, schools, and other abandoned spaces.

02_MAD_Echigo Tsumari_Tunnel of Light_Periscope_by Nacasa & Partners Inc._low-res.jpg

04_MAD_Echigo Tsumari_Tunnel of Light_Periscope_low-res.jpg


Works from past editions have remained intact, forming an integral part of the local environment, even after the triennale has concluded, as a means of culturally enriching the area. In a community that has lost its dynamism, and has become isolated, the Echigo-Tsumari Triennale seeks to re-connect people with the place, as well as with one another. While viewing artworks, visitors must physically traverse the terraced rice fields, or walk through the beech wood forest. Thus, it presents a new model for how humans can relate to nature, cultivating the land with art and cultural works as an ongoing process of urban reactivation. In turn, it also encourages co-operation between different generations and neighbouring regions.


18_MAD_Echigo Tsumari_Tunnel of Light_Live Cave_by Nacasa & Partners Inc..jpg


As part of the 2018 program, MAD Architects was invited to revitalize the Kiyotsu Gorge Tunnel – a historic, 750-meter passageway that cuts through distinctive rock formations, offering panoramic views over one of Japan’s three great chasms.Drawing on the ‘five elements’ of nature (wood, earth, metal, fire, water), MAD’s scheme transforms points along the historic tunnel through the realization of several architectural spaces and artistic atmospheres. The designs rethink the relationship between humans and nature, and seek to re-connect locals and visitors alike with the majestic beauty of the land.


 01_MAD_Echigo Tsumari_Tunnel of Light_Sitemap_low-res.jpg

 “天河”——木(纪念品商店&温泉足浴)“Periscope” (wood)


Upon the approach to the tunnel, a small wooden ‘hut’ has been erected that serves as the café, souvenir shop (with locally made crafts) on the ground floor. Inside the pitched cedar roof on the upper level, is a hot spring foot spa. A circular aperture – the “Periscope” – in the ceiling opens up towards the roof.

03_MAD_Echigo Tsumari_Tunnel of Light_Periscope_low-res.jpg


Encircled by mirrored lenses that reflect the nature of the surrounding site inwards, the subtle intervention gives visitors the opportunity to enjoy the natural scenery outdoors, while they have a foot bath and relax within the warmth of the wooden interior.


“色”——土(隧道)“Expression of Color” (earth)


The entrance to the tunnel has been restored to its former glory, and leads the way to the newly renovated passage. Originally illuminated through natural means, it has been outfitted with a series of different coloured lights which define each lookout point along the tunnel. Captured as “The Expression” of the space, their vibrancy, in combination with mysterious music, sets a subtle but dynamic ambiance that sparks a certain curiosity of the unknown for those who are wandering through.


“窥”——金(第二观景台)“Invisible Bubble” (metal)


The first of the lookout point renovations is the “Invisible Bubble”. As if landing from another world, the capsule-like structure gently mirrors the silhouette of the tunnel itself, while reflecting its surroundings. Functioning as a toilet, the wall which faces towards the gorge is transparent. This exterior window is covered in a metallic film that only allows one-way views from the inside out, playing with the notion of public and private. Providing a quiet escape, a place of solitude, it is an intimate space that finds itself in an openly public setting. It puts into question how people react when they think that no one is watching – an ideal corner of contemplation.


13_MAD_Echigo Tsumari_Tunnel of Light_Invisible Bubble_by Nacasa & Partners Inc..jpg

 “滴”——火(第三观景台)“The Drop” (fire)

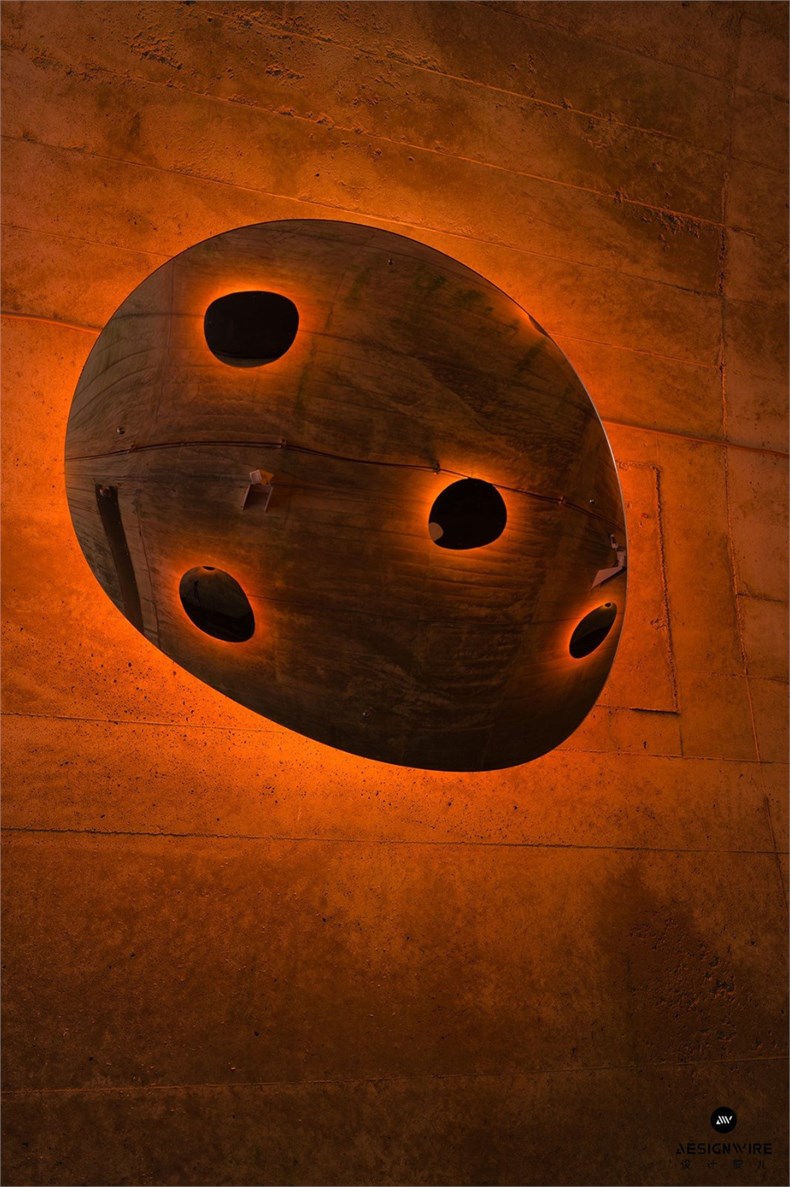

‘Dew drops’ are scattered along the curvature of the second lookout point. “The Drop” is a series of reflective openings that are like windows of uncertainty. While they project a reality by mirroring the natural environment, they also appear surreal, like molecules of water, they are suspended from the ceiling and walls, frozen in time. As one looks into these convex mirrors, backlit by fiery, red light, they experience an alternative connection with nature – one that is at once mysterious and warm.



“镜池”——水(第四观景台)“Light Cave” (water)


The culmination of the restoration is expressed in the form of the “Light Cave”. Semi-polished stainless steel lines the tunnel, drawing the distinct rock formations, lush greenery, and turquoise water of the treasured terrain, into the enclosed space. A shallow pool of water gently ripples with the breeze of the wind. In turn, the images of the gorge reflected from the cave cast themselves onto the water – an infinite illusion of nature. The essence of the “Light Cave” brings both a lightness and stillness into the once dark, dewy tunnel, invoking a feeling of everlasting solitude.



 MAD’s “Tunnel of Light” is an artistic transformation that demonstrates how art and nature can come together to reinvigorate a community. Each one of the installations, forms a poetic space where visitors can transcend the role of observer, and become an active participant – allowing individuals to place themselves in nature in unexpected ways.




合作建筑师:Green sigma Co., Ltd.

Design Team: Ma Yansong, Yosuke Hayano, Dang Qun, Hiroki Fujino, Kazushi Miyamoto, Yuki Ishigami

Executive Architect: Green sigma Co., Ltd.
